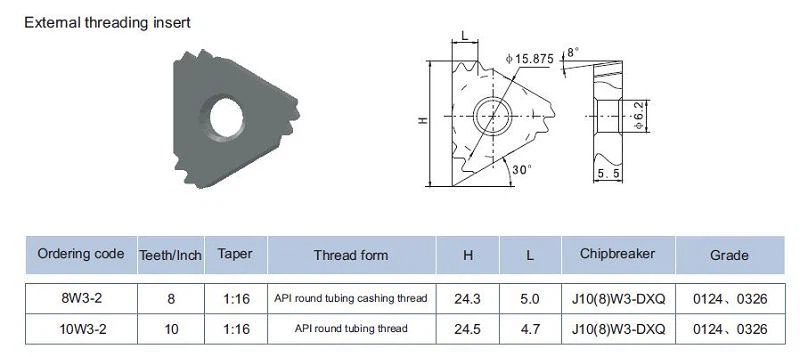

Round Threading Inserts
"SK" stands for the insert used for the NC threading machine. "BP""BC" stands for the insert used for the specific NC threading machine. If not used for the NC threading machine, do not show any code.
Description
Description
The Round Threading Inserts are internally threaded and can accept a bolt or threaded fastener. Generally speaking, threaded inserts can be made of different materials, have different sizes, and have different configurations. In some too thin or too soft materials, threaded fasteners may not be stable, so these products are needed. If your equipment needs to be disassembled and reassembled, or special soft materials are used, the advantages of threaded inserts will be reflected. For example, it is difficult to fix the threaded bolt with soft plastic. In this case, the use of threaded inserts can bring greater strength.
Features
There are several types of Round Threading Inserts, depending on the application. Plastic threaded inserts can be used for plastic materials and with ultrasonic welding machines. When metal plates, sandwich panels or honeycomb sandwich structures are used, threaded inserts are usually installed to distribute shear, tension and torque loads to a larger area of material. Manufacturers of furniture typically ship parts with threaded inserts pre installed to increase stability.

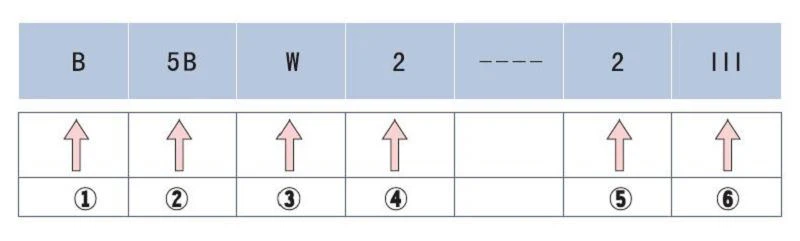

①－Stands for the threading machine or company name.
"SK" stands for the insert used for the NC threading machine. "BP""BC" stands for the insert used for the specific NC threading machine. If not used for the NC threading machine, do not show any code.
②－Stands for the code of thread types or thread pitch.
8P=1/8 "(=3.175mm) V type round thread of tubing and casing(taper1:16).
10 P=1/10 "(=2.540mm) V type round thread of tubing (taper1:16).
5B P=1/5"(=5.080mm) buttress thread of casing(taper1:16).
5B+D P=1/5"(=5.080mm) buttress thread of casing(taper1:12).
4Y1 P=1/4"(=6.350mm) V-0.038R thread of oil drillrod connector(taper1:6)
4Y2 P=1/4"(=6.350mm) V-0.038R thread of oil drillrod connector(taper1:4).
5Y3 P=1/5"(=5.080mm) V-0.040 thread of oil drillrod connector(taper1:4).
4Y4 P=1/4"(=6.350mm) V-0.050 thread of oil drillrod connector(taper1:4).
4Y5 P=1/4"(=6.350mm) V-0.050 thread of oil drillrod connector(taper1:6).
6Y6 P=1/6"(=4.233mm) V-0.050 thread of oil drillrod connector(taper1:8).
③－W－ external thread N－internal thread.
④－The character 1.2.3.4 stands for the number of the edges.
⑤－The character 1.2.3.8 stands for the number of the teeth per edge .
⑥－The character Ⅰ.Ⅱstands for the different teeth types. If only one type, don't show any code.
