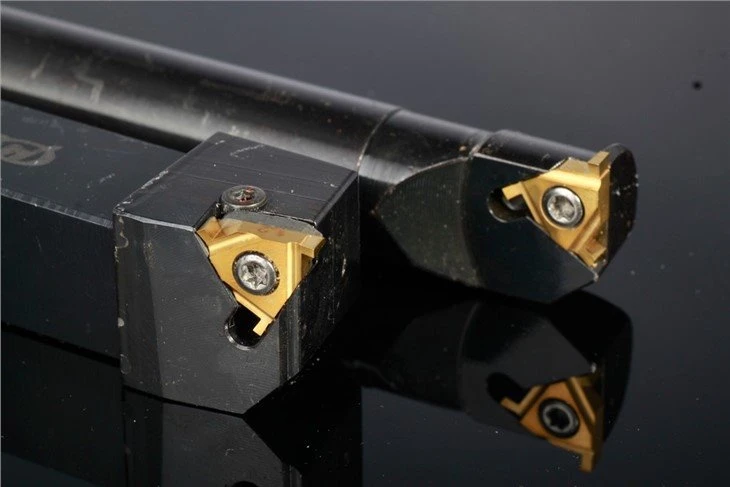

Grooving Inserts
Carbide indexable groove cutting tools developed by CTRI can be adapted to varieties of groove profile processing and demonstrate high accuracy, better efficiency and short lead time etc.
Description
Product Introduction
Our Grooving Inserts are suitable for various groove processing applications, and have the characteristics of high precision, high efficiency and short delivery time. According to the different processing parts, they have various sizes and specifications, and can be divided into inner hole slot blade, cylindrical slot blade and surface slot blade to meet your different processing needs. In addition, their groove width is 0.5~3.5mm, and the depth is 0.5~4mm, and can be used to process inner holes as small as 8mm, which is very flexible.
Features
These Grooving Inserts can be well used in various machining processes, and can ensure the groove size and accuracy, and achieve new grooving performance. In addition to providing you with a variety of high-speed cutting options, they also have a variety of sizes and specifications, so they are very easy to adjust during processing. They can be directly installed on the mold, or installed on the hinge for use, to quickly carry out the processing process.
Specification
National Standard | Material | Speed (m/min ) |
P | Low/Midium Carbon steel | 20-100 |
High Carbon Contented Steel | 30-80 | |
Alloy Steel,quenched and tempered steel | 40-90 | |
M | Stainless Steel | 30-80 |
Cast Iron Steel | 30-90 | |
K | Cast Iron | 30-90 |
N | Nonferrous or Aluminum | 20-200 |
